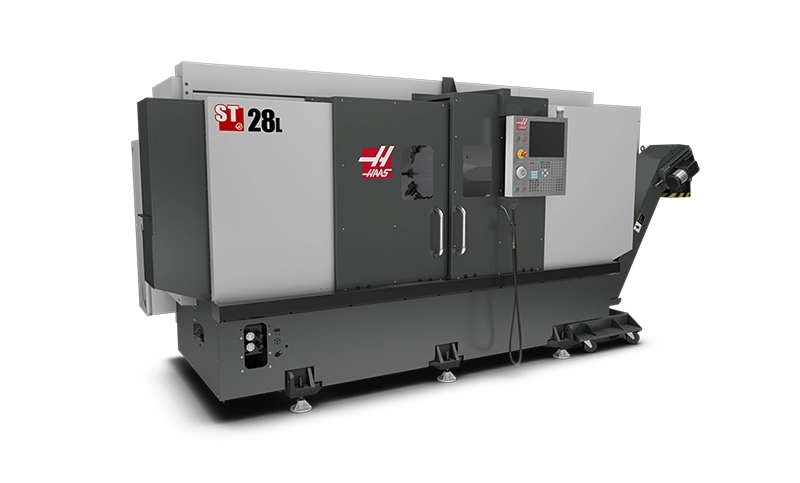

Capacities
Chuck Size
: 305 mm
Max Part Swing
: 533 mm
Max Cutting Diameter (with BOT turret)
: 330 mm
Max Cutting Diameter (with BMT65 turret)
: 298 mm
Max Cutting Length (varies with workholding)
: 1080 mm
Bar Capacity
: 102 mm
Travels
X Axis
: 239 mm
Z Axis
: 1080 mm
Feedrates
Rapids on X
: 24.0 m/min
Rapids on Z
: 24.0 m/min
Axis Motors
Max Thrust X
: 18238 N
Max Thrust Z
: 22686 N
Spindle
Spindle Nose
: A2-8
Max Rating
: 29.8 kW
Max Speed
: 3200 rpm
Max Torque
: 576.0 Nm @ 325 rpm
Spindle Bore ø
: 117.3 mm
Turret
Number of Tools
: 12-Station BOT
OD vs ID Tools
: Any Combination (will vary with turret)
Boring Bar Rear Clearance (from back of turret )
: 102.0 mm
General
Coolant Capacity
: 208 L
Air Requirements
Air Required
: 113 L/min @ 6.9 bar
Inline Air Hose
: 3/8 in
Coupler (Air)
: 3/8 in
Air Pressure Min
: 5.5 bar
Electrical Specification
Spindle Speed
: 3200 rpm
Drive System
: Direct Speed, Belt Drive
Spindle Power
: 29.8 kW
Input AC Voltage (3 Phase) - Low
: 220 VAC
Full Load Amps (3 Phase) - Low
: 70 A
Input AC Voltage (3 Phase) - High*
: v
Full Load Amps (3 Phase) - High*
: 35 A
Dimensions - Shipping
v
: 483 cm x 229 cm x 229 cm
Export Pallet
: 483 cm x 229 cm x 229 cm
Weight
: 12000 lb
